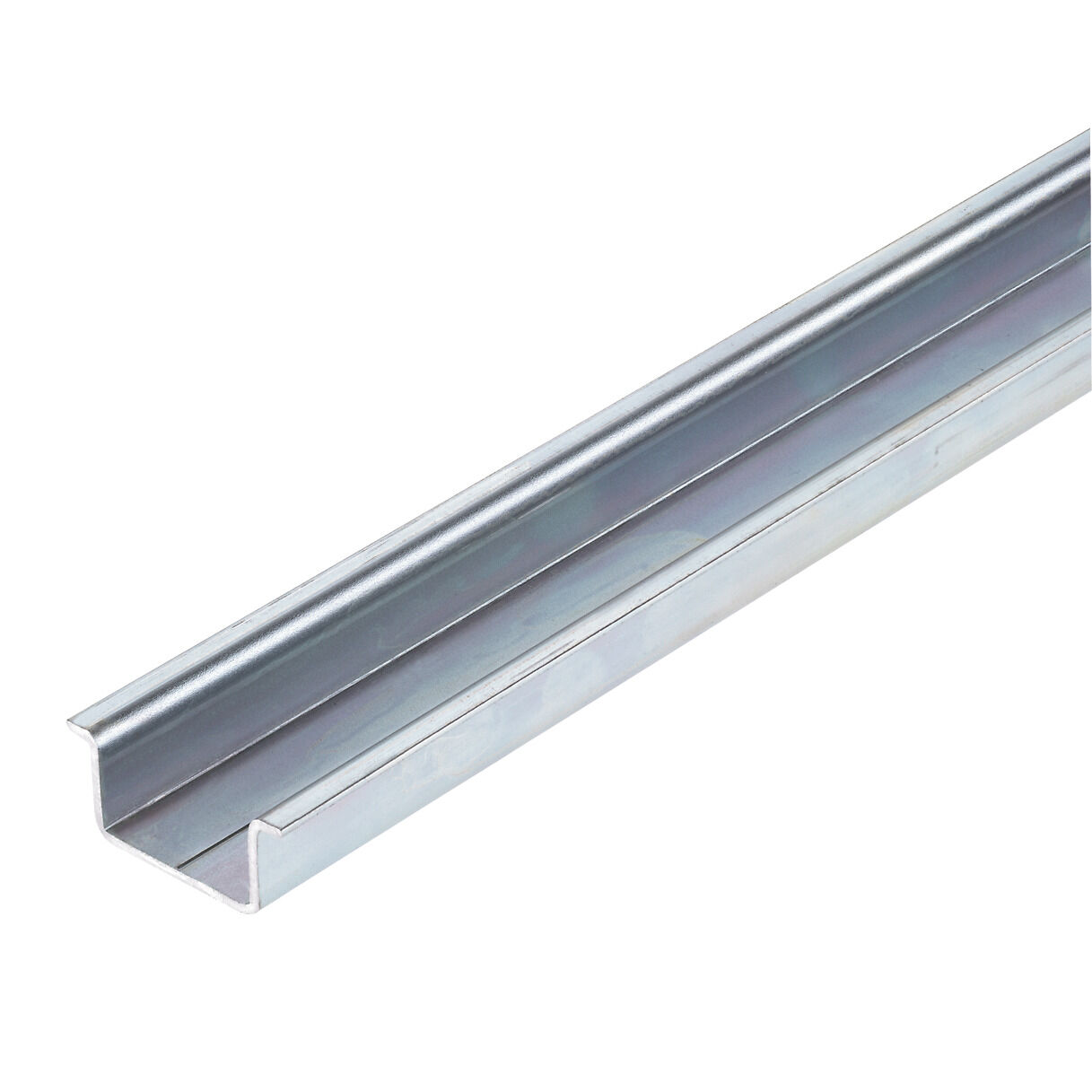

Weidmuller TS 35X15 2M/ST/ZN 0236400000 Terminal Rail

  • Weidmuller TS 35X15 2M/ST/ZN 0236400000 Terminal Rail

Short Description:

Weidmuller TS 35X15 2M/ST/ZN 0236400000 is Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm

Item No.2917500000




  • :

    • Product Detail

    Product Tags

    General ordering data



    Version Terminal rail, Accessories, Steel, galvanic zincplated and passivated, Width: 2000 mm, Height:

    35 mm, Depth: 15 mm
    Order No. 0236400000
    Type TS 35X15 2M/ST/ZN
    GTIN (EAN) 4008190114558
    Qty. 20 M

    Dimensions and weights



    Depth 15 mm Depth (inches) 0.5906 inch
    Height 35 mm Height (inches) 1.378 inch
    Width 2000 mm Width (inches) 78.74 inch
    Net weight 570.37 g

    Weidmuller Steel DIN rails



    DIN mounting rails (commonly called terminal rails or top-hat rails) are one of Weidmüller’s foundational standard products. As early as the formulation of DIN EN 60715 international standard for cabinet mounting profiles, Weidmüller participated in standard setting and launched its first standardized TS series mounting rails in the 1950s. For decades, the brand has continuously upgraded rail profiles, surface coating technologies and matching accessories, turning simple metal strips into a complete modular cabinet infrastructure system, widely adopted by panel builders, equipment manufacturers and electrical contractors worldwide.
    Weidmüller DIN rails lineup

    2. Standard Profile Types & Structural Specifications

    Weidmüller delivers the full range of globally mainstream DIN rail profiles fully compliant with DIN EN 60715, covering C-type, G-type and top-hat (TS) designs to fit diverse installation demandsWeidmüller:
    1. TS 15: Miniature narrow rail, compact for small control modules and signal terminals
    2. TS 20 / C20: C-profile low-profile rail, used for light-load component fixing
    3. TS 27: Medium C-rail, widely applied in residential distribution boxes
    4. TS 32 / G32: G-shaped deep profile rail, for heavy-load locking and stable assembly
    5. TS 35 (TS35×7.5 / TS35×15): Global universal top-hat rail, the most widely used specification for industrial control cabinets
    Each profile is supplied in perforated (slotted/holed) and solid unperforated versions, with customizable cut lengths from 1 meter to 10 meters or tailored finished sizes.
