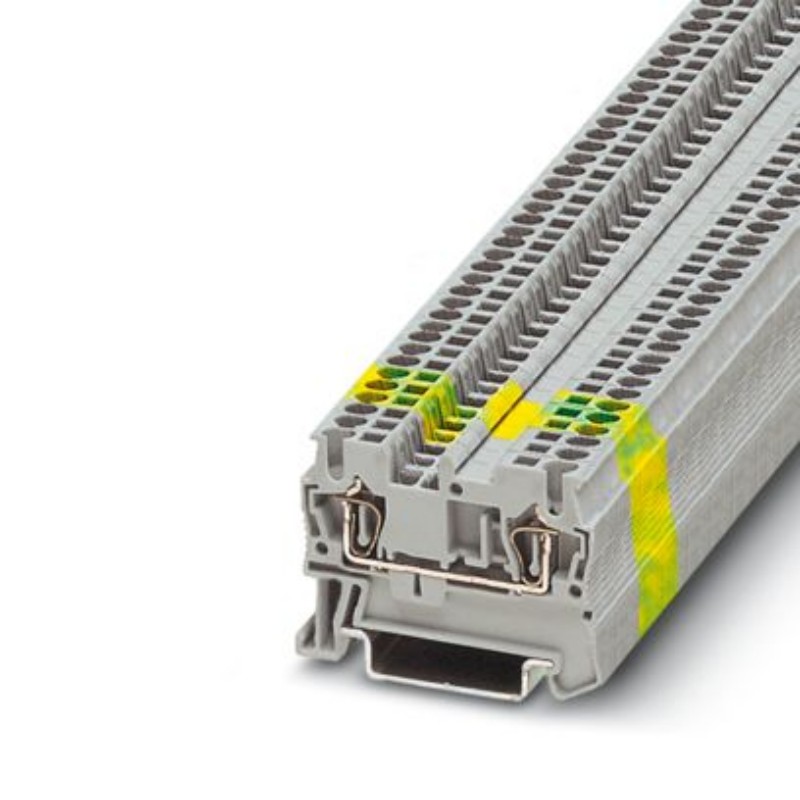

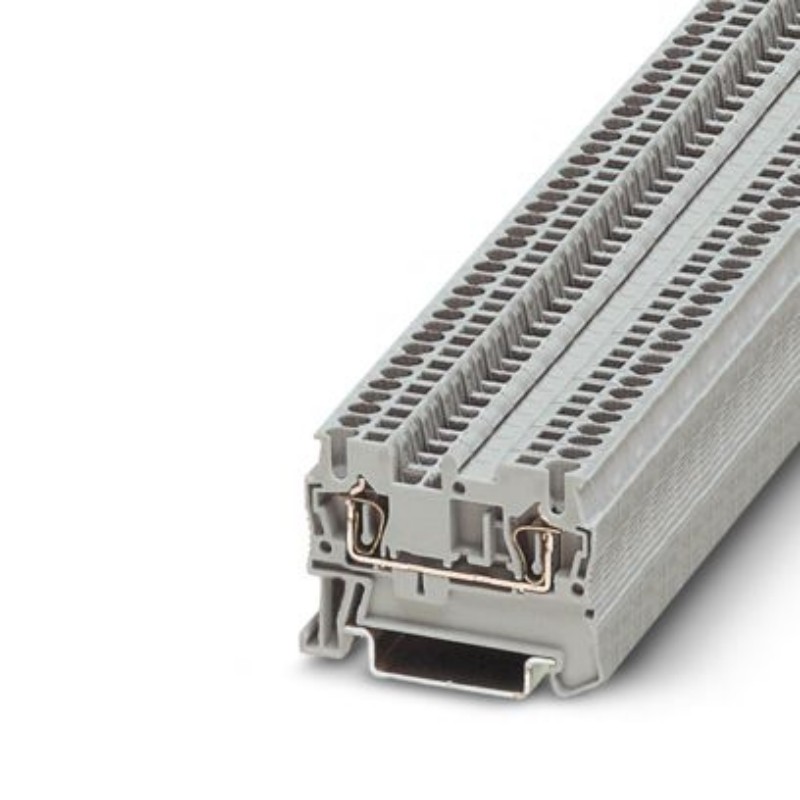

Phoenix Contact ST 1,5 3031076 Terminal Block

  • Phoenix Contact ST 1,5 3031076 Terminal Block
  • Phoenix Contact ST 1,5 3031076 Terminal Block
  • Phoenix Contact ST 1,5 3031076 Terminal Block

Short Description:

Phoenix Contact ST 1,5 3031076 is Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 2, connection method: Spring-cage connection, Rated cross section: 1.5 mm2, 1 level, cross section: 0.08 mm2 - 1.5 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray


Product Detail

Product Tags

Commerial Date



Item number 3031076
Packing unit 50 pc
Minimum order quantity 50 pc
Product key BE2111
GTIN 4017918186616
Weight per piece (including packing) 4.911 g
Weight per piece (excluding packing) 4.974 g
Customs tariff number 85369010
Country of origin DE











TECHNICAL DATE



Product type Feed-through terminal block
Product family ST
Area of application Railway industry
Machine building
Plant engineering
Process industry
Number of connections 2
Number of rows 1
Potentials 1
Insulation characteristics
Overvoltage category III
Degree of pollution 3



Connection method Spring-cage connection
Stripping length 8 mm ... 10 mm
Internal cylindrical gage A1
Connection in acc. with standard IEC 60947-7-1
Conductor cross-section rigid 0.08 mm² ... 1.5 mm²
Cross section AWG 28 ... 16 (converted acc. to IEC)
Conductor cross-section flexible 0.08 mm² ... 1.5 mm²
Conductor cross-section, flexible [AWG] 28 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve) 0.14 mm² ... 1.5 mm²
Flexible conductor cross-section (ferrule with plastic sleeve) 0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm²
Nominal current 17.5 A
Maximum load current 17.5 A (with 1.5 mm² conductor cross-section)
Nominal voltage 500 V
Nominal cross section 1.5 mm²



Width 4.2 mm
End cover width 2.2 mm
Height 48.5 mm
Depth on NS 35/7,5 36.5 mm
Depth on NS 35/15 44 mm
