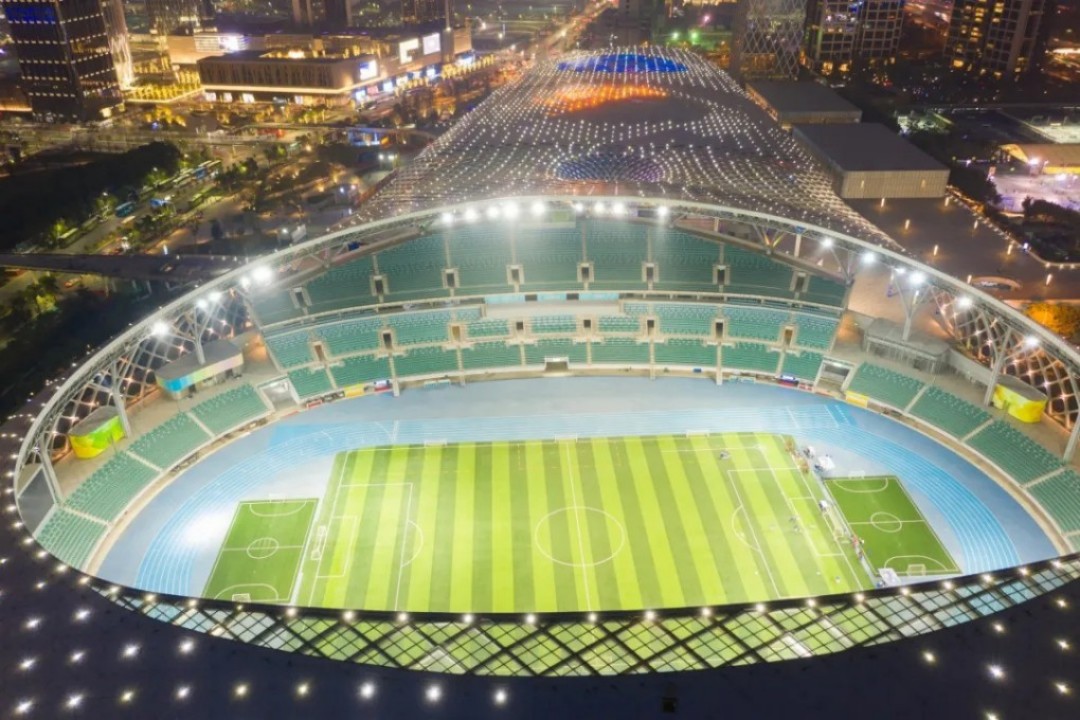

As modern sports venues rapidly advance toward intelligence and high standards, football pitch lighting systems have become core infrastructure for competitions, daily training and night-time operations. This imposes extremely stringent requirements on power supply stability, wiring safety and convenient maintenance.
Football pitch lighting systems generally feature a large number of lamps, long wiring spans, complex outdoor operating environments and long-duration continuous operation. As core components for circuit connection, the reliability of power terminal blocks directly determines the service life and safety rating of the entire lighting system. Adopting a compact structure, proven CAGE CLAMP® spring connection technology, wide temperature adaptability and maintenance-free design, WAGO mini DIN rail terminal blocks perfectly meet the wiring demands of football pitch lighting power supply systems, emerging as a preferred power distribution solution for outdoor sports lighting.

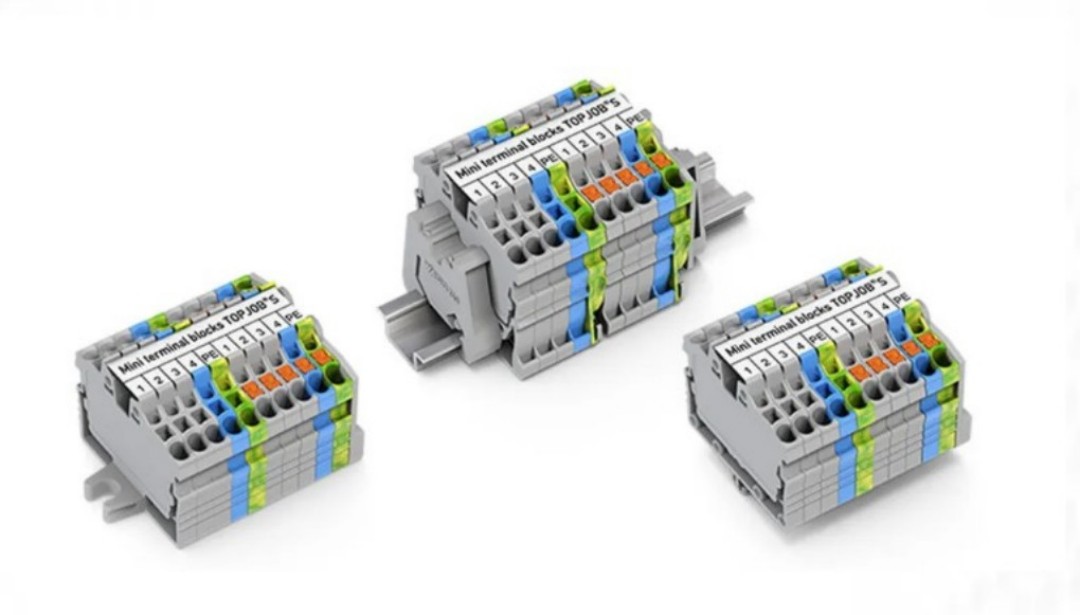

Core Product Features of WAGO Mini DIN Rail Terminal Blocks
1. Compact Miniaturized Design to Save Power Distribution Space
Built with a lightweight micro structure, these terminal blocks support DIN-15 rail mounting and fit confined installation spaces inside standard distribution boxes and control cabinets. Compatible with various wire gauges for main lighting circuits and control circuits, each terminal boasts a tiny footprint that enables high-density arrangement. This delivers neat wiring inside distribution enclosures and greatly improves space utilization efficiency.
2. Spring Cage Connection for Stable, Maintenance-Free Termination
Equipped with WAGO’s CAGE CLAMP® spring clamping technology as an alternative to traditional screw clamping structures, the terminals allow cable insertion for instant connection without screw tightening. The uniform, long-lasting clamping force prevents loosening and poor contact caused by equipment vibration and thermal expansion/contraction under temperature swings. This effectively eliminates wiring faults triggered by long-term vibration and temperature fluctuations in outdoor football venues. With no screws to maintain, the risk of screw rusting and loosening is entirely eliminated.
3. Outstanding Electrical Performance to Meet Power Distribution Load Requirements
Rated for up to 800 V and 24 A, WAGO mini DIN rail terminal blocks fully cover the load parameters of low-voltage power distribution systems for football pitch lighting. They stably withstand continuous current loads during long-term lamp operation and resist current fluctuations from frequent lighting switching. Additionally, the products feature an 8 kV impulse withstand voltage rating, which defends lighting circuits against transient voltage surges induced by thunderstorms outdoors and safeguards lighting equipment.
Practical Applications of WAGO Mini DIN Rail Terminal Blocks in Football Pitch Lighting Power Projects Wiring for Zoned Lighting Control Cabinets

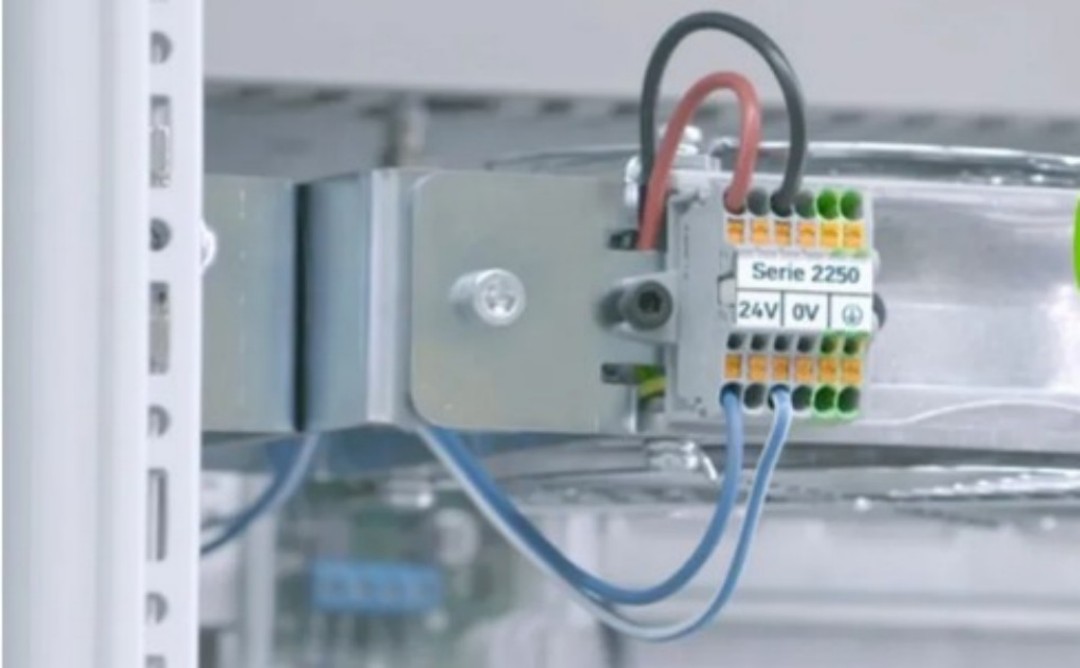

Wiring for Zoned Lighting Control Cabinets
A standard football pitch is divided into multiple lighting zones, each fitted with an independent control cabinet to enable separate switching, dimming and fault monitoring for zone lighting. These cabinets act as central intermediate nodes for power wiring and feature compact interiors with dense wiring. Thanks to their micro size and high-density layout capability, WAGO mini DIN rail terminal blocks are the primary choice for this application scenario.
Terminal Circuit Wiring for Pitch Lamps
WAGO mini DIN rail terminal blocks fit the limited space of small outdoor junction boxes to realize power parallel connection and circuit transfer for single or multiple lamps. Their superior resistance to extreme temperatures and aging shields against corrosion of terminal insulation and metal components under harsh outdoor conditions. Furthermore, the screw-free connection structure eliminates loosening risks, completely resolving common defects of conventional screw terminals such as rust-induced detachment and poor contact after long-term outdoor use, and drastically reducing lamp power outages and equipment failures.
For new football pitch lighting construction and renovation projects alike, WAGO mini DIN rail terminal blocks enable standardized, regulated wiring at all power distribution nodes. They boost construction efficiency and cut overall project costs, while ensuring long-term stable and safe operation of lighting systems at the core component level. As a cost-effective, highly practical wiring solution for outdoor sports power distribution, they hold broad promotion and application value.
Post time: Jul-16-2026
