Currently, the global new energy storage industry is entering a period of rapid growth. With the large-scale application of integrated photovoltaic and energy storage systems in industrial and commercial settings, unprecedentedly stringent requirements are being placed on the reliability of high-voltage, high-current connections. Connectors, though small, are the "choke points" of energy transmission, and their performance directly determines the system's efficiency and safety boundaries. WAGO, with its full-matrix connector product range from signal to power, provides reliable and flexible electrical connection solutions for integrated photovoltaic and energy storage applications.
I: Three Major Challenges for Connectors in Integrated Photovoltaic and Energy Storage Systems
In the integrated design of "photovoltaics + energy storage," equipment often faces the dual challenges of compact space and harsh environments. A leading domestic power equipment manufacturer, in its new generation of integrated photovoltaic and energy storage systems, has identified three core requirements for the connection环节:
Space Adaptability: The internal layout of the equipment is highly compact, requiring connectors to have excellent installation flexibility and support rapid mating to adapt to modular designs.
Environmental Tolerance: The system needs to withstand long-term outdoor high temperature, high humidity, dust, and vibration conditions, requiring connectors with excellent sealing and mechanical strength.
Operational Safety: Manual on-site operation carries the risk of mis-insertion; therefore, robust foolproof and anti-dislodgement mechanisms are essential to prevent human error.
II: WAGO Energy Storage Connection Solution – Solving Challenges with Full-Matrix Connectors
1. Space Adaptability: Miniaturization and lever technology solve the challenge of compact layouts.
MCS MICRO 2712 Series – The Miniature Champion with 2.54mm Pitch

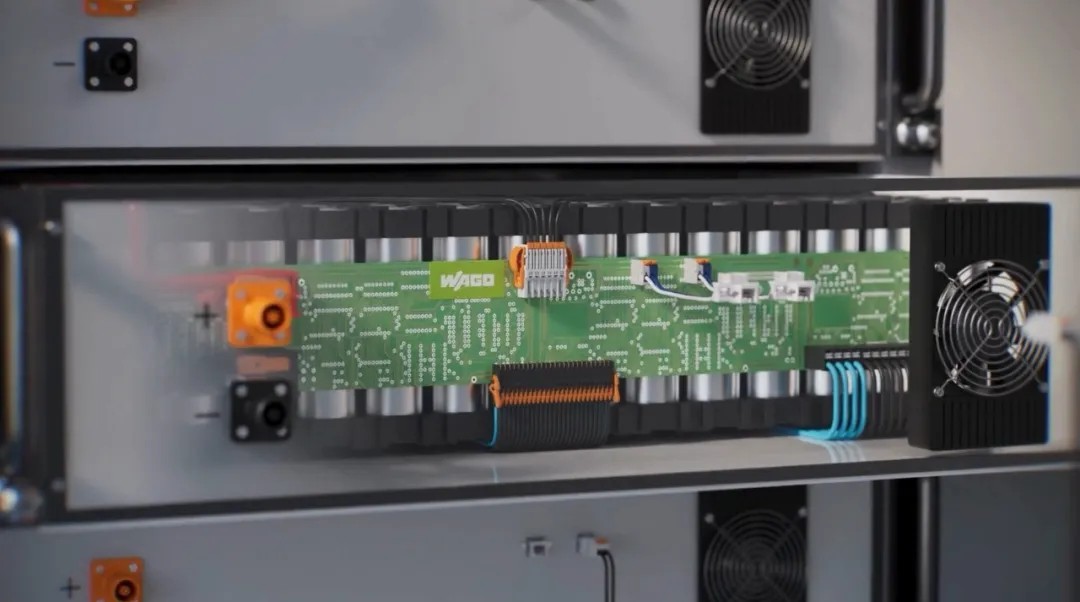

This series features a pin pitch of only 2.54mm, supporting 0.08–0.5mm² wires. Equipped with lever technology, it enables tool-free wiring in extremely small spaces; a dual-row version (up to 50 connection points) is available, supporting THT/THR automated assembly processes, meeting the stringent space requirements of energy storage device circuit boards.
picoMAX 2901 Series – Compact Connector System Saving 30% of Space
This series features an innovative single-spring, double-acting design, saving up to 30% of PCB space compared to traditional connectors. An integrated locking pin and release slider ensure a secure connection even under 20g vibration acceleration; the ultra-short flow guide design reduces contact resistance, allowing for a rated current of up to 16A.
MCS Connectors with Operating Lever (2734/2231/2721 Series) – One-Click Plug, Efficient Deployment
This series features a signature orange operating lever for easy identification of the open/closed state. The 2734 series (MINI) has a 3.5mm pitch, suitable for confined spaces; the 2231 series (MIDI) uses a central locking mechanism, saving space on the sides; the 2721 series features side locking for one-handed operation. When connecting cable harnesses, installers no longer need to reach deep into cabinets with screwdrivers, significantly improving installation efficiency.
2. Environmental Tolerance: High Protection and High Current Design, Facing Harsh Outdoor Conditions
Containerized energy storage systems are often deployed outdoors, facing challenges from high temperatures, high humidity, dust, and continuous vibration. WAGO connectors respond to these challenges with robust protection and high current-carrying capacity.
2730 Series Energy Storage Dedicated Connectors – 1500VDC High Voltage Protection
This series features a 360° rotating mating design, flexibly adapting to tight wiring between battery clusters and PCS; it boasts an IP67 protection rating, coupled with multi-key foolproof and mis-assembly coding; it has passed UL 4128 and TÜV SÜD dual certifications, meeting the 1500VDC high voltage system standard. Specifically designed for heavy-duty interfaces on the battery side and PCS side of large containerized energy storage systems, ensuring safe system operation in outdoor high humidity and high salt spray environments.
A Wide Range of High-Power Products – High Power and High Temperature Resistance
WAGO offers a comprehensive range of PCB terminal blocks and plug-in connectors with operating levers. These products support conductor cross-sectional areas from 0.14 to 25 mm² (26–4 AWG). In environments with temperatures up to 85°C, they can handle rated currents up to 76A and rated voltages up to 1000V, meeting the power requirements of various energy storage systems, from residential to large-scale commercial and industrial systems, ensuring continuous and stable operation of energy storage systems under extreme conditions.
3. Operational Safety: Foolproof, Anti-Drop-Off, and Locking Mechanisms to Prevent Human Error
On-site manual operation is one of the most uncontrollable aspects of energy storage system installation. WAGO connectors incorporate multiple safety features from the design stage:
Follow-the-Like Coding and Anti-Incorrect Insertion Design
MCS MICRO 2712, picoMAX Both the 2901 and 2730 series offer multiple color-coded and mechanical key configurations to ensure no mis-insertion between different circuits, reducing the risk of human error during commissioning.
Multiple Locking Systems: The 2730 series incorporates three locking systems to prevent accidental disconnection; the 2231/2721 series' center or side locking devices remain robust even under frequent opening and closing vibrations of the energy storage cabinet door; picoMAX The integrated locking pin and release slider of the 2901 ensure the connection remains secure even under 20g vibration acceleration.
Visualized Operating Lever Status: The orange operating levers of the 2734/2231/2721 series clearly display the open/closed status, allowing installers to confirm wiring accuracy without additional checks, eliminating language barriers and significantly reducing wiring errors in overseas projects.
WAGO's Full-Scenario Coverage of Energy Storage Electrical
Connection Systems: From residential energy storage battery packs to light industrial and commercial distributed energy storage and large-scale integrated photovoltaic-energy storage, WAGO's mature electrical connection solutions provide stronger support for customers.
Reliable Connections, Flexible Customization
Facing the explosive growth of the integrated photovoltaic-energy storage market, WAGO leverages its German Push-in CAGE CLAMP® technology to ensure that every connection in the energy storage system is maintenance-free, vibration-resistant, and easy to diagnose. We not only provide standard products but also possess strong customization capabilities, driving energy innovation with customized services and making every connection more valuable.
In the future, WAGO will continue to uphold its innovation and green philosophy, safeguarding the safe and efficient operation of global energy storage systems.
