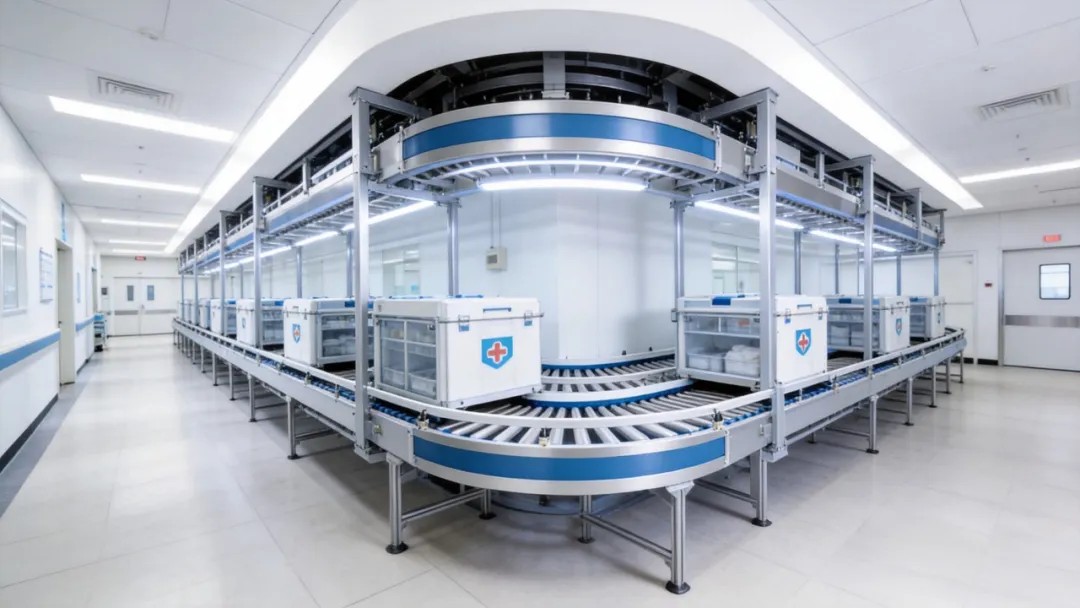

Hospital box-based track logistics systems transport specimens, pharmaceuticals and consumables round the clock (7/24). The equipment is subject to recurring shocks from shuttling trolleys, frequent cycling of switching mechanisms, and continuous vibration from negative-pressure fans. Compounding these issues are corrosive disinfection fumes throughout the hospital premises, condensation and humidity inside electrical cabinets, severe electromagnetic interference from mixed strong and weak current wiring within shared enclosures, and cramped spaces in distributed floor-level mini electrical boxes. Conventional screw terminals tend to loosen easily and cause distorted sensor signals. Any wiring fault will directly disrupt clinical material delivery, demanding exceptional reliability for electrical connections. WAGO DIN rail-mounted terminal blocks deliver an optimal connection solution for these electrical applications.

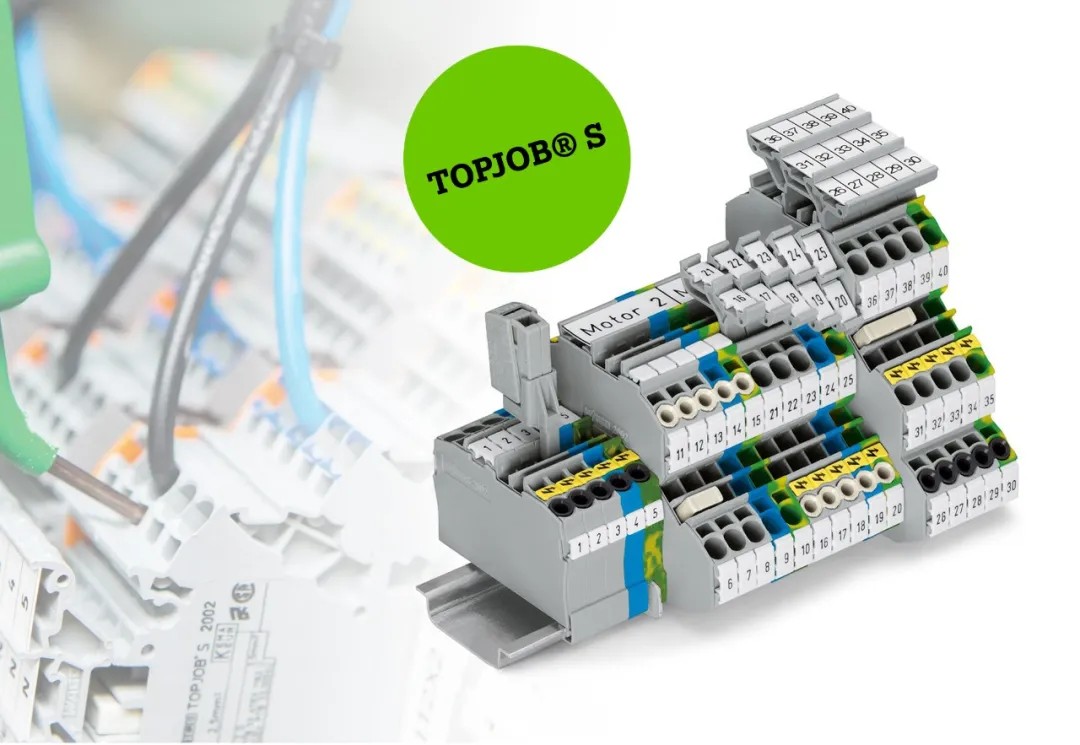

WAGO Series 2002 DIN Rail Spring Terminal Blocks: Workhorse for Power Distribution and Control Circuits
Serving as universal DIN rail terminals for main control cabinets and floor sub-control boxes, these terminals utilise the constant clamping force of cage spring technology to prevent wire loosening amid prolonged equipment vibration.
They supply power to lifting motors and vacuum pumps, as well as distribute 24 VDC control power for PLCs and valve islands. The double-tier terminal design separates strong and weak current wiring to mitigate electromagnetic interference. They consolidate PE equipotential bonding for the entire system and dissipate static electricity generated by trolley movement, complying with medical electrical safety standards. Featuring modular mounting on standard DIN rails and tool-free push-in wiring, they facilitate high-density wiring in compact wall-mounted enclosures. Additional terminals can be readily added for future ward expansions, streamlining maintenance and inspections.

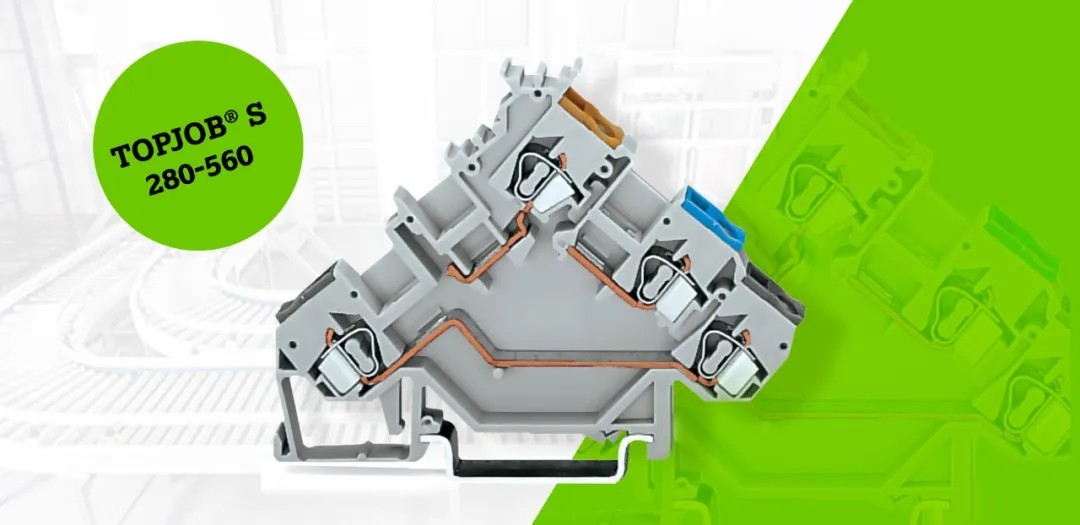

WAGO 280-560 3-Wire Sensor Terminals: Standardised Connection for Detection Signals
Tailored for the extensive photoelectric sensors, proximity switches and negative-pressure transmitters deployed across logistics systems:
1.Colour-coded terminals standardise 3-wire sensor wiring, eliminating wiring errors during installation and drastically cutting commissioning rework.
2.Applied for presence detection of supplies at stations, track switching limit positioning, upper/lower limits for lifts, and analogue vacuum pressure signal acquisition. Their vibration-resistant structure sustains steady signal transmission, preventing trolley positioning errors and track jams that trigger system shutdowns.
3.Valve island feedback signals are centrally branched on-site for tidy wiring layouts, shortening overnight maintenance downtime for hospitals.
Core Application Advantages
1.Vibration Resistance & Dependability: Both product lines adopt cage spring clamping technology that retains consistent clamping force under vibration, ensuring year-round uninterrupted system operation.
2.Medical Environment Compatibility: UL94-V0 flame-retardant housings and passivated conductive components resist corrosion from disinfection vapours and condensation, delivering long-term maintenance-free performance.
3.Modular Deployment: Seamless assembly on shared DIN rails; Series 2002 handles power distribution and control wiring while the 280-560 range processes sensor signals, forming a standardised electrical control package.
4.Strict Regulatory Compliance: Robust earthing and flame retardant construction satisfy hospital equipment acceptance criteria and electrical safety codes.
Within hospital box logistics transmission systems, WAGO Series 2002 DIN rail terminals manage power distribution and control circuit wiring,while the 280-560 sensor terminals standardise detection signal collection across all monitoring points. Combined, they establish stable electrical connections spanning power supply to signal acquisition, effectively avoiding system outages caused by loose contacts and signal anomalies. Safeguarding efficient, secure and non-stop hospital logistics operations, they constitute the preferred wiring solution for electrical control cabinets in medical logistics equipment.
