The metro integrated monitoring system serves as the core of metro operations management and control. It integrates monitoring and linkage functions across various subsystems—such as environmental control, equipment, fire safety, and power supply—placing rigorous demands on the stability, safety, and maintainability of electrical connections.

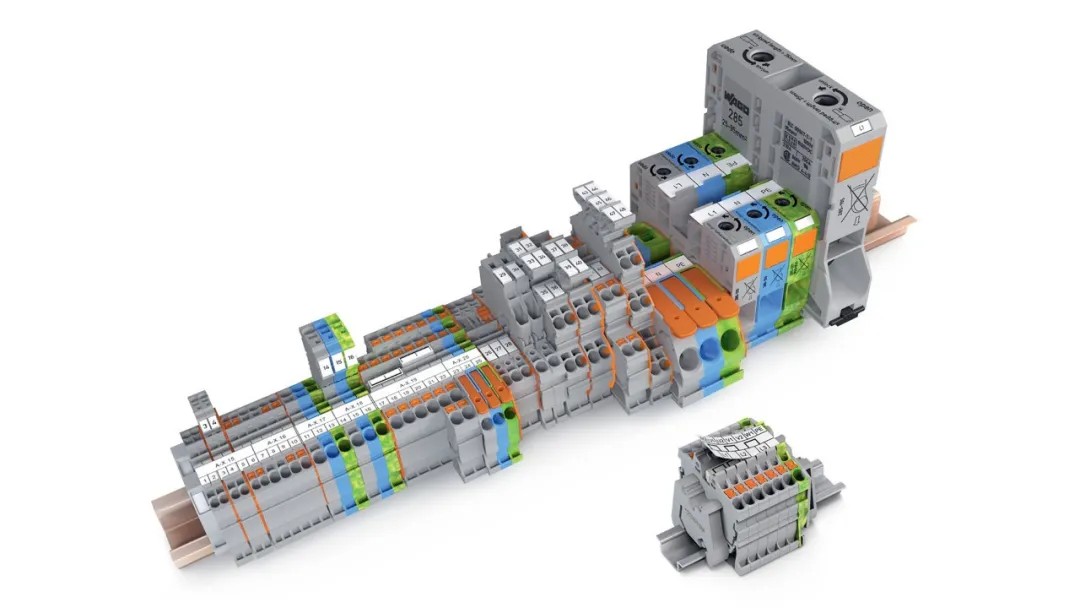

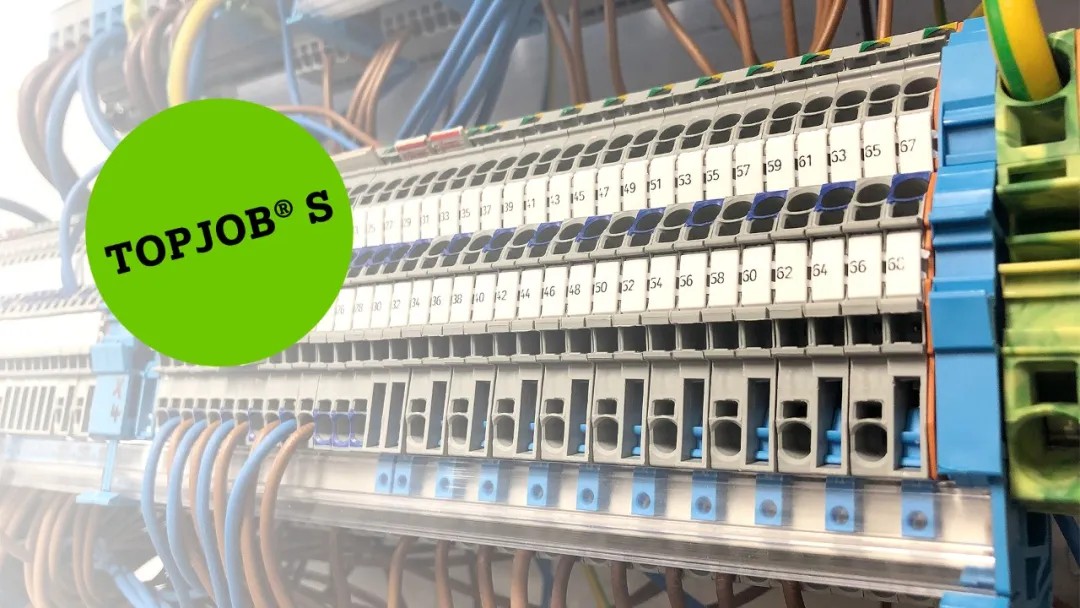

Leveraging proven CAGE CLAMP® spring connection technology, WAGO TOPJOB® S rail-mount terminal blocks are designed to withstand the complex operating conditions of metro environments. Widely used in various cabinet-based monitoring equipment, they ensure reliable electrical connections for stable system operation.
Core Wiring Requirements for Metro Integrated Monitoring Systems
Metro monitoring systems operate continuously (24/7) amidst complex conditions and densely packed equipment. Consequently, terminal blocks must meet four key requirements: high reliability (withstanding train vibrations, temperature/humidity fluctuations, and electromagnetic interference to prevent loose connections or signal anomalies); high integration (fitting into confined cabinet spaces and accommodating high-density wiring); ease of maintenance (facilitating troubleshooting and system expansion while simplifying repairs); and strong compatibility (handling signal and power lines of varying wire gauges and current ratings).
Key Advantages of WAGO TOPJOB® S Rail-Mount Terminal Blocks
Addressing the rigorous demands of metro monitoring systems, this series offers significant technical advantages perfectly suited to rail transit environments.
1. Stable, Maintenance-Free Connections:
Utilizing WAGO’s screwless CAGE CLAMP® spring connection technology, the blocks maintain constant clamping pressure on conductors. They are unaffected by vibration or temperature changes, exhibit no contact resistance drift, and eliminate issues like loose connections or signal interruptions, ensuring maintenance-free operation throughout the equipment's lifecycle.
2. Compact and Space-Saving:
Featuring a compact design with a minimum width of just 9 mm, these blocks support high-density, multi-level wiring. This effectively saves installation space in control cabinets, accommodating the trend toward miniaturized and integrated metro equipment layouts.
3. Efficient and Convenient Maintenance:
Supporting various tool-free, rapid wiring methods—combined with standardized marking and jumper systems—these blocks significantly boost efficiency in wiring, disconnection, and troubleshooting, making them ideal for the high-frequency maintenance requirements of metro systems. 4. Strong Operational Adaptability:
The product range covers everything from low-voltage signal lines to low-voltage power supply lines. Certified specifically for rail transit applications, these terminals offer excellent resistance to electromagnetic interference, temperature extremes, and corrosion, making them suitable for diverse environments such as platforms, tunnels, and equipment rooms.
With their core strengths of stability, efficiency, and adaptability, WAGO TOPJOB® S rail-mount terminal blocks effectively address the challenges inherent in metro integrated monitoring systems—including complex operating conditions, dense wiring, and rigorous maintenance requirements. Amidst the intelligent upgrading of metro systems, they fully meet the demand for high precision and high integration, ensuring a robust electrical connection foundation for the safe, stable, and efficient operation of metro integrated monitoring systems.
