As more households install photovoltaic (PV) panels, energy storage systems, and EV charging equipment, a new question arises: how can this electricity be utilized more intelligently?
Daytime: Rooftop PV power generation
Evening: Peak household electricity consumption
Nighttime: Urgent need for EV charging
The answer lies within a key device increasingly found in homes: the smart meter.

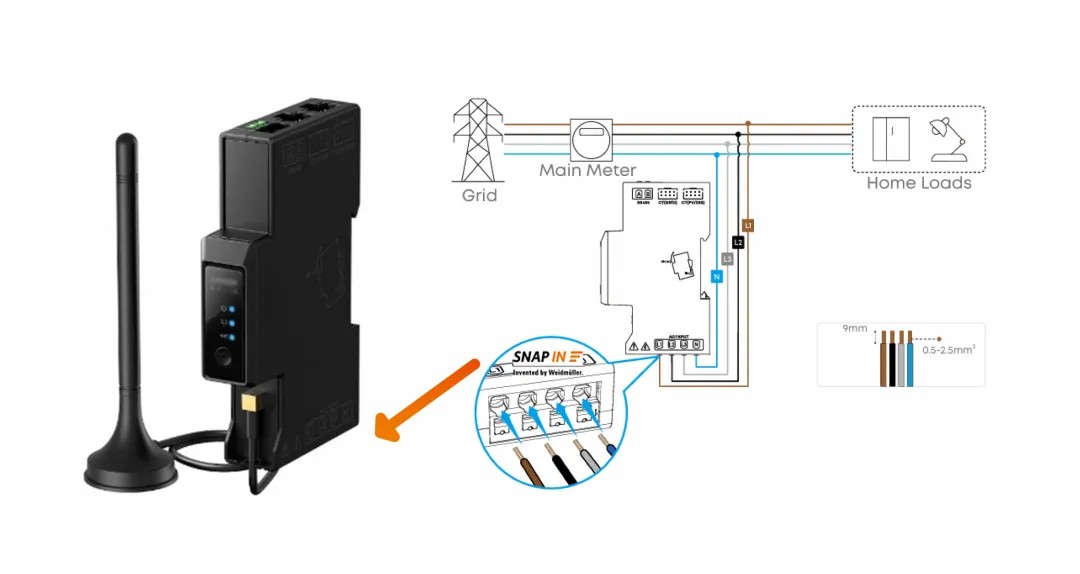

Smart meters can monitor, analyze, and manage household energy flows in real-time, enabling PV, energy storage, and charging equipment to work in synergy for more efficient energy management. For a leading global manufacturer of residential energy storage systems, the internal connection solution is a critical factor in ensuring the smart meter is user-friendly, durable, and easy to upgrade. This is because the connectors must withstand a threefold challenge:
Installation is often performed by engineers across different regions; how can quality risks arising from variations in manual operation be avoided?
Smart meters require stable, 24/7 operation; how can this reliability be guaranteed?
Product update cycles are shortening; how can prototype validation be completed quickly?
The customer needed a fresh approach to connectivity—so Weidmuller introduced the OMNIMATE® 4.0 connector series. Leveraging innovative SNAP IN connection technology, it provides a solution that balances efficiency, reliability, and flexibility.

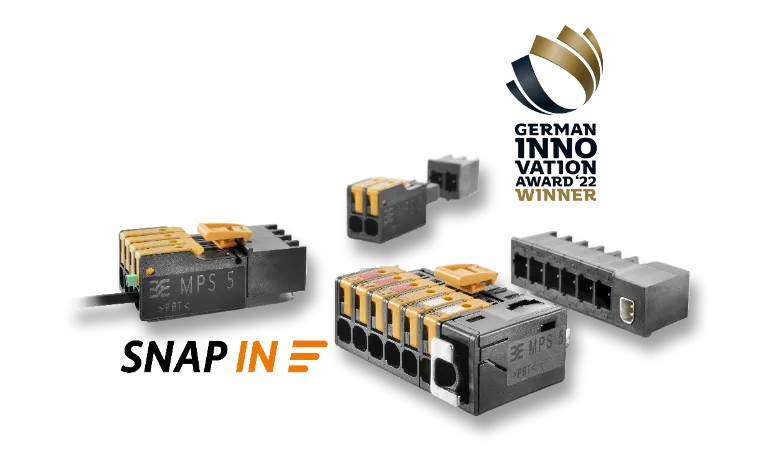

Weidmuller OMNIMATE® 4.0 Connectors: Future-Ready SNAP IN Direct-Insertion Technology
Eliminates the need for traditional screw tightening and tedious wire stripping; even flexible conductors can be inserted directly, locking instantly via a "mousetrap" mechanism.

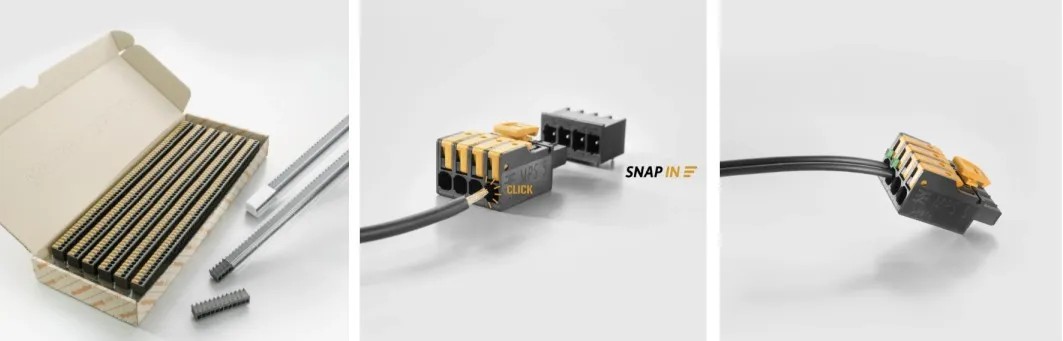

Ready-to-Wire Out of the Box:
Supplied in a ready-to-wire state, allowing for immediate connection without tools.
Automated Production Line Compatibility:
Made from high-performance plastic materials suitable for various soldering processes (such as wave and reflow soldering), ensuring full compatibility with modern manufacturing and automated production line requirements.
Customized Marking and Configuration:
Users can quickly customize product markings using the Weidmuller Configurator (WMC). Supports six functional color codes and terminal markings of up to three characters, making the design clear at a glance.
It is the convergence of these innovative technologies that delivers immense business value to customers.
Breaking through the "last mile" challenge for smarter connections
Equipment installation is often performed by engineers across different regions; how can quality risks arising from variations in manual handling be avoided?
Thanks to the triple-feedback mechanism of SNAP IN connection technology—visual, audible, and tactile—installers can perform standardized operations simply by inserting the wire, without the need for complex training. This provides a reassuring sense of confirmation for every installation, significantly reducing human error and inconsistency, while simultaneously boosting on-site efficiency and ensuring uniform installation quality.
Smart meters require stable, 24/7 operation; how is this stability guaranteed?
The patented SNAP IN structure ensures a stable clamping force on the wire even under challenging conditions such as vibration and temperature fluctuations. This guarantees the long-term, stable operation of the smart meter as a core node in the home energy system, significantly lowering future maintenance costs and the risk of failure.
Product update cycles are constantly shortening; how can prototype validation be completed quickly?
In the rapidly evolving consumer energy market, design engineers seeking the ideal connection solution for their application can order design samples in just four steps. From validation testing to product development, Weidmuller offers a wide range of models and customization support, helping customers shorten R&D cycles and accelerate time-to-market.
The efficient operation of home energy systems relies on the stable performance of every connection point. Weidmuller’s OMNIMATE® 4.0 SNAP IN connectors provide reliable support for home energy management, ensuring that every kilowatt-hour of green energy delivers maximum value.
