In recent years, China's LED lighting industry has continued to lead the global green lighting trend, with technological innovation and product upgrades accelerating. As the world's largest producer and exporter of LED lighting products, China's lighting industry is moving towards greater efficiency, intelligence, and reliability.

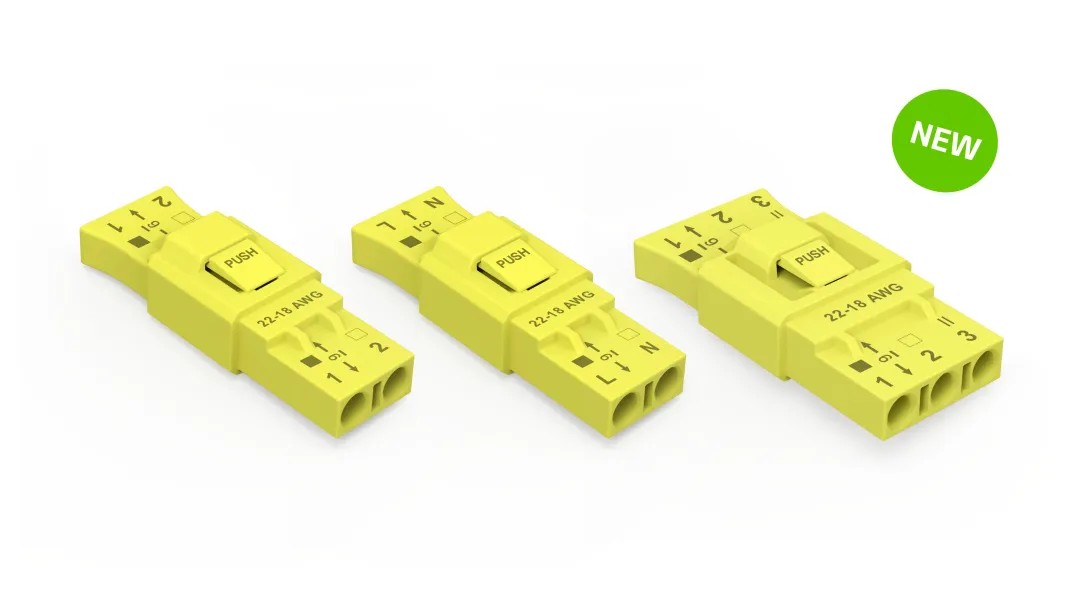

Against this trend, WAGO has launched the 873 series plug-in connectors, specifically designed for lighting fixtures. With a more compact, safer, and more convenient connection solution, these connectors help the lighting industry achieve efficient installation and reliable operation.
Compact Size, Powerful Performance
Extremely Wide Wiring Range, Widely Applicable
The 873 series covers AWG 22-18 (0.34-0.75mm²) wires, with a maximum rated current of 3A, flexibly matching the wiring needs of various lighting equipment.
Spring Clamping Technology, More Efficient Operation
The new 873 series, using PUSH WIRE® plug-in spring technology made of tin-plated copper alloy, utilizes the wire's own stiffness to deform the spring, clamping the wire in place. Insert single-strand and tinned multi-strand wires directly into the plug, and remove them by rotating – tool-free, offering enhanced compatibility and higher efficiency.
Compact Design for Easy Installation

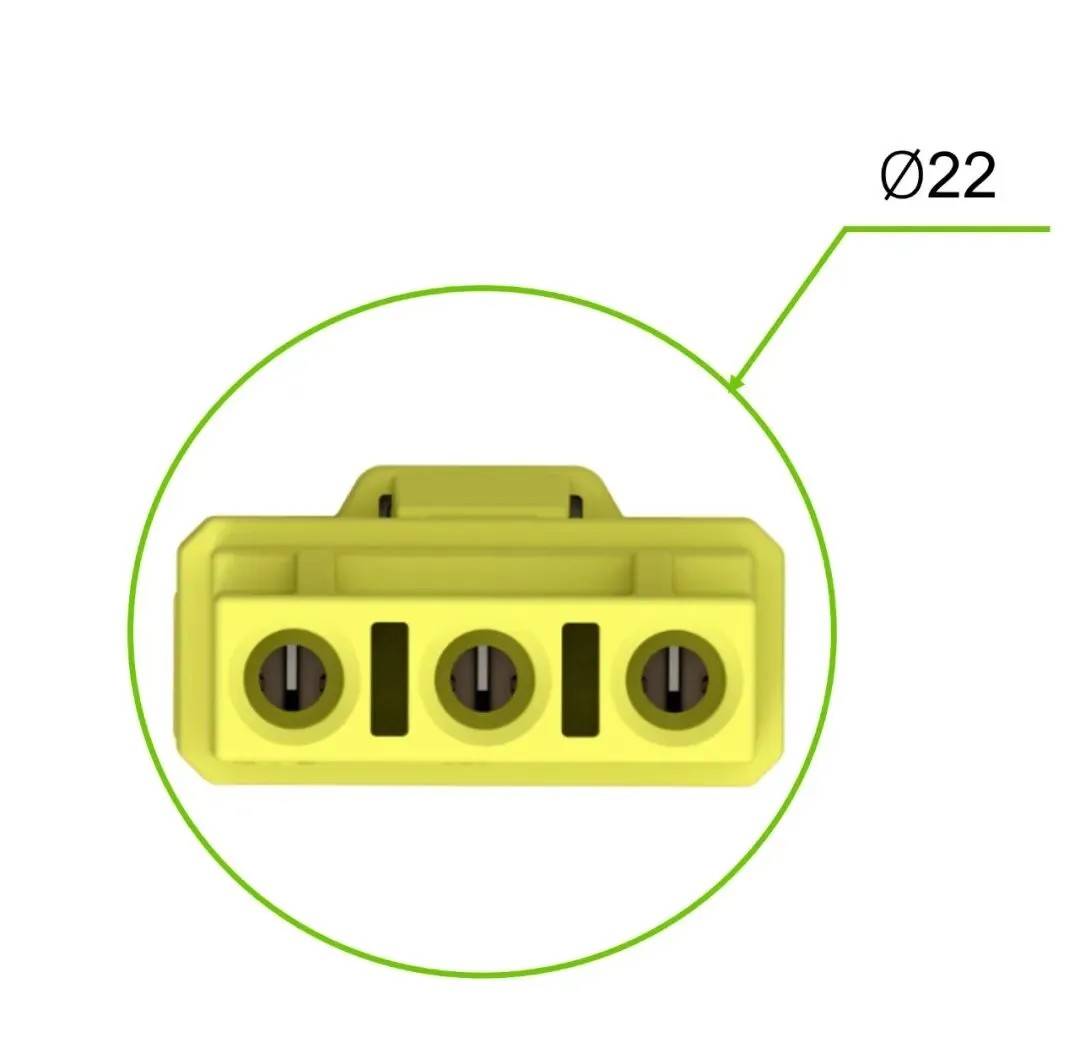

The 873 series features a compact design: a single-channel structure and small size. The 2-position product measures only 13×10×40mm. Both 2-position and 3-position products can pass through a 1/2-inch (approximately 22mm) diameter knockout hole, perfectly adapting to lighting ballast power supply scenarios and complying with US standard recessed lighting standards.
Multiple Protections for Safe and Reliable Installation

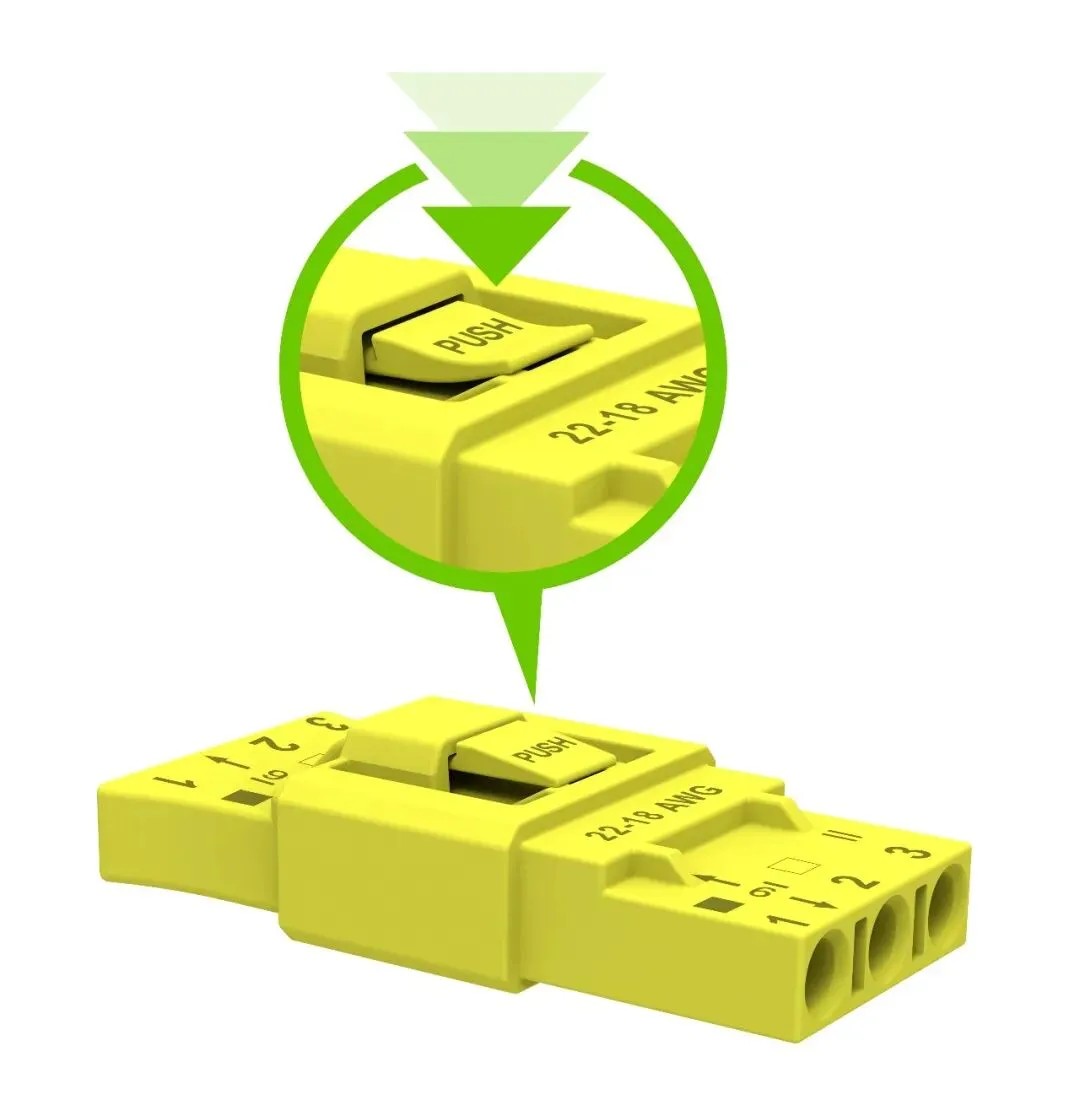

One-Button Locking for Reliable Connection
The unique locking button design automatically engages upon insertion, accompanied by a "click" sound, clearly indicating proper insertion and effectively preventing accidental loosening, providing a reliable connection.

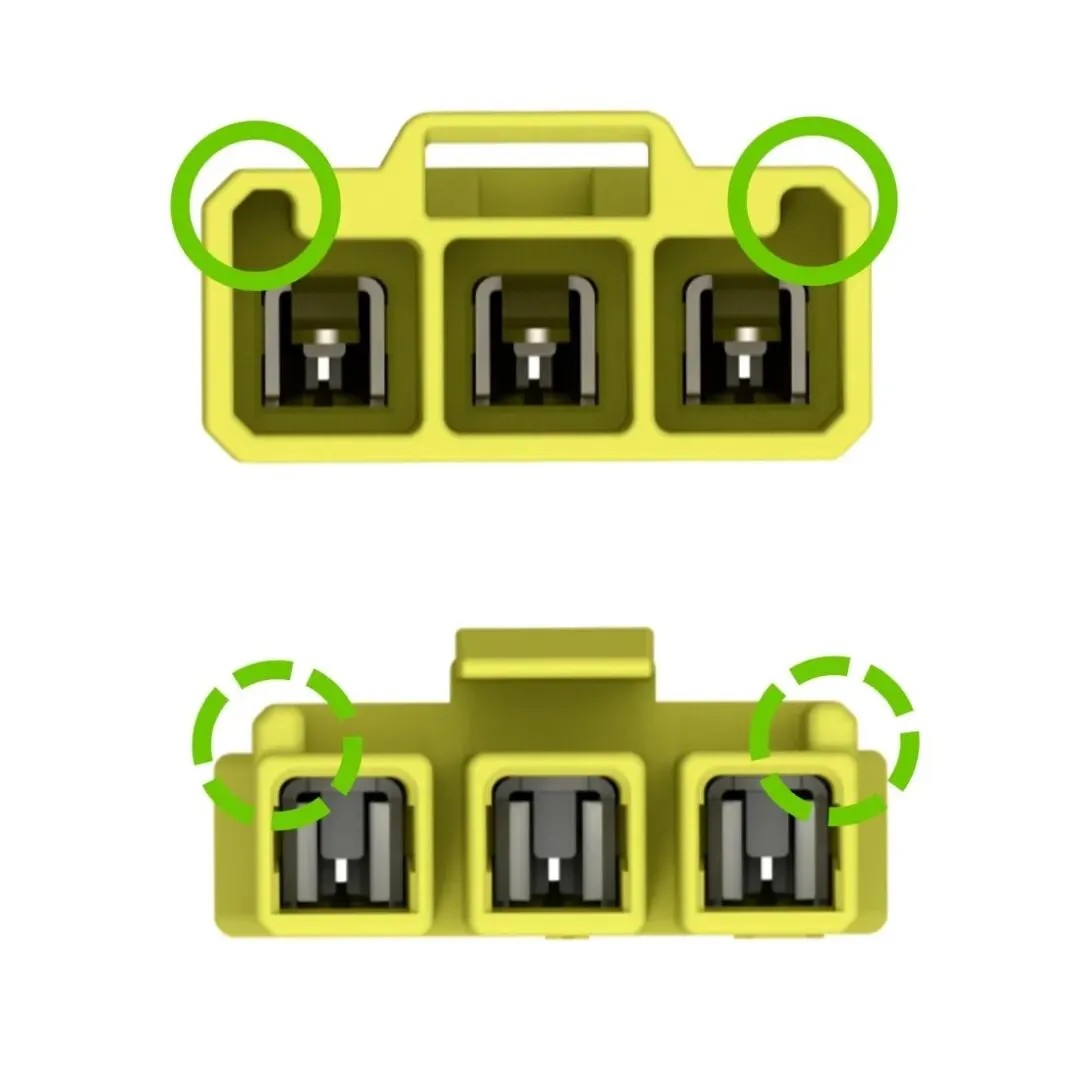

Anti-Misalignment Structure for Safer Installation
The plug-in structure features electric shock protection. Guide posts and guide grooves on both sides of the product effectively prevent reverse insertion, significantly improving installation efficiency and safety, making operation more worry-free.

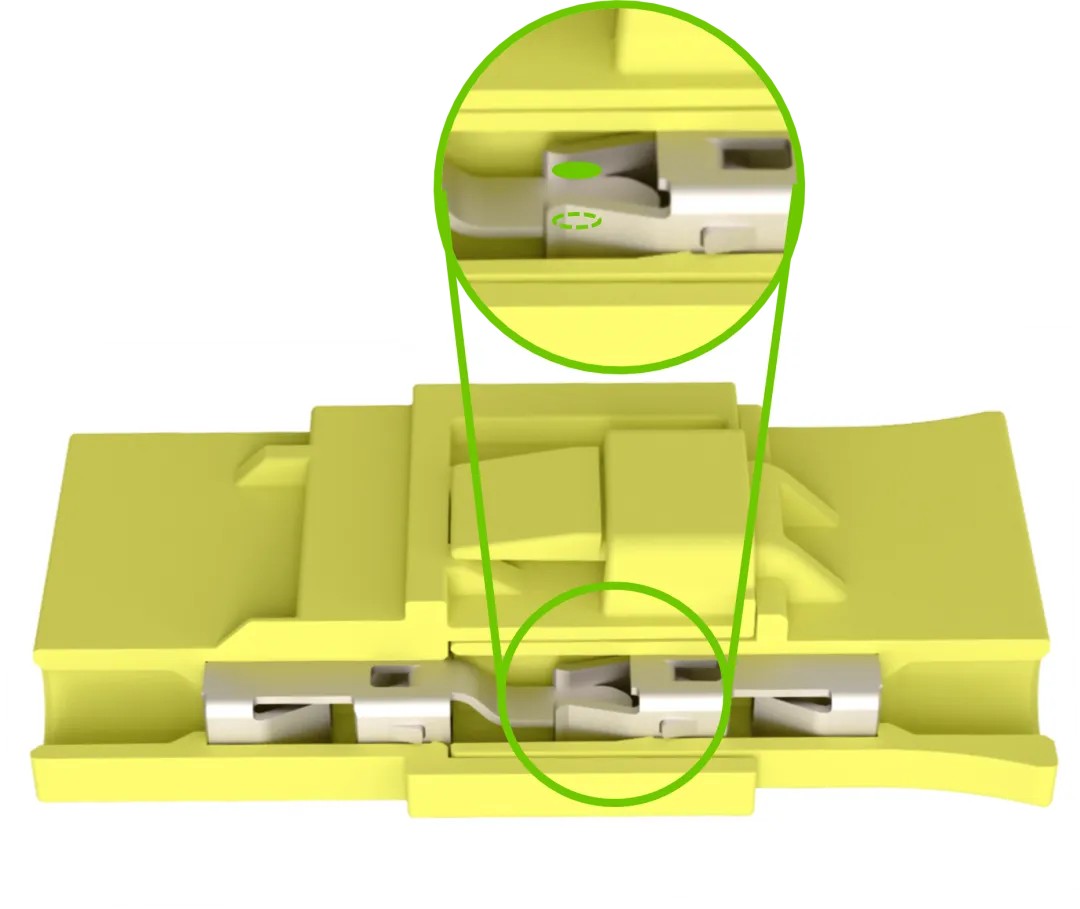

Dual-point contact, stable and durable
The current-guiding clip and pins form a connection through dual-point contact, offering higher stability and reliability than single-point contact connections, and stronger surge current withstand capability.
The new 873 series uses PA66 insulation material, achieving a UL94 V0 fire retardant rating, and can operate stably at temperatures up to 105℃. The product is dual-certified by UL 2459 and IEC/EN 61984, and has CE declaration, ensuring quality meets international standards.

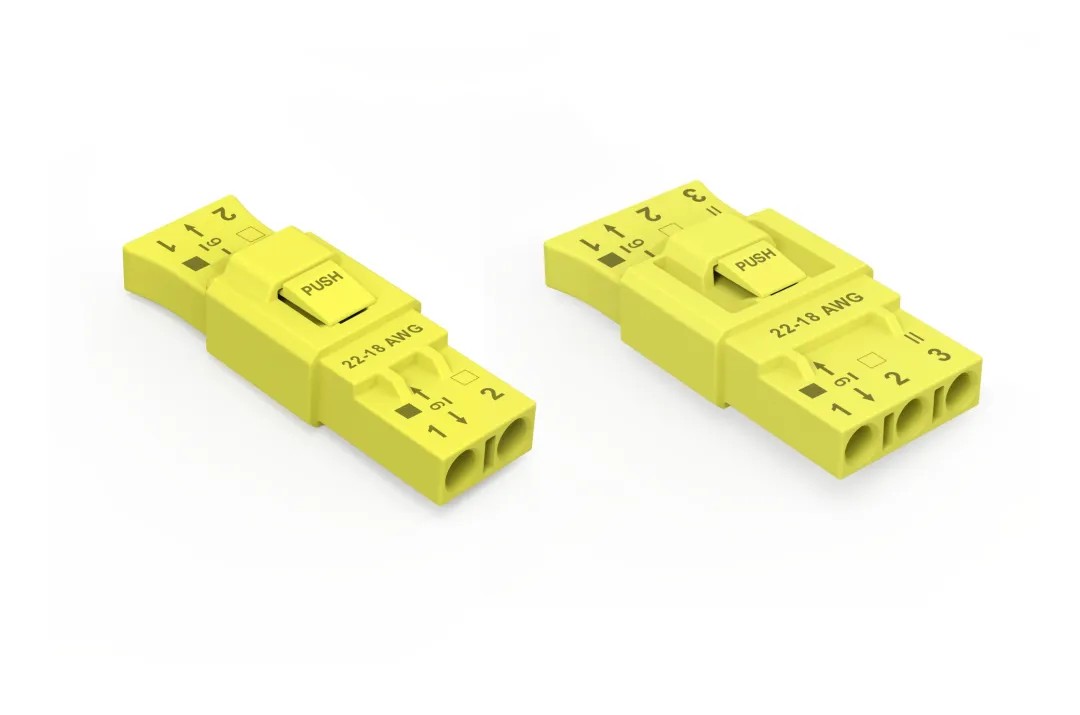

The new 873 series simplifies the original 2-in-4-out and 3-in-6-out configurations to 2-in-2-out and 3-in-3-out configurations, resulting in a smaller size and wiring range better suited to the actual wiring needs of modern LED lighting fixtures. This truly achieves greater space saving, easier installation, and more stable connections.
Whether for commercial lighting, OEM lighting fixtures, interior decorative lighting, or supermarket lighting renovation projects, the WAGO 873 series provides efficient, safe, and time-saving connection solutions, making lighting installation and maintenance simpler.
