For chemical production, the smooth and safe operation of the device is the primary goal.
Due to the characteristics of flammable and explosive products, there are often explosive gases and steam at the production site, and explosion-proof electrical products are required. At the same time, since the production process requires a series of chemical reactions and the process equipment is complex, it is a typical process industry, so the electrical connection technology that is reliable, convenient and meets various wiring requirements on site is quite important.

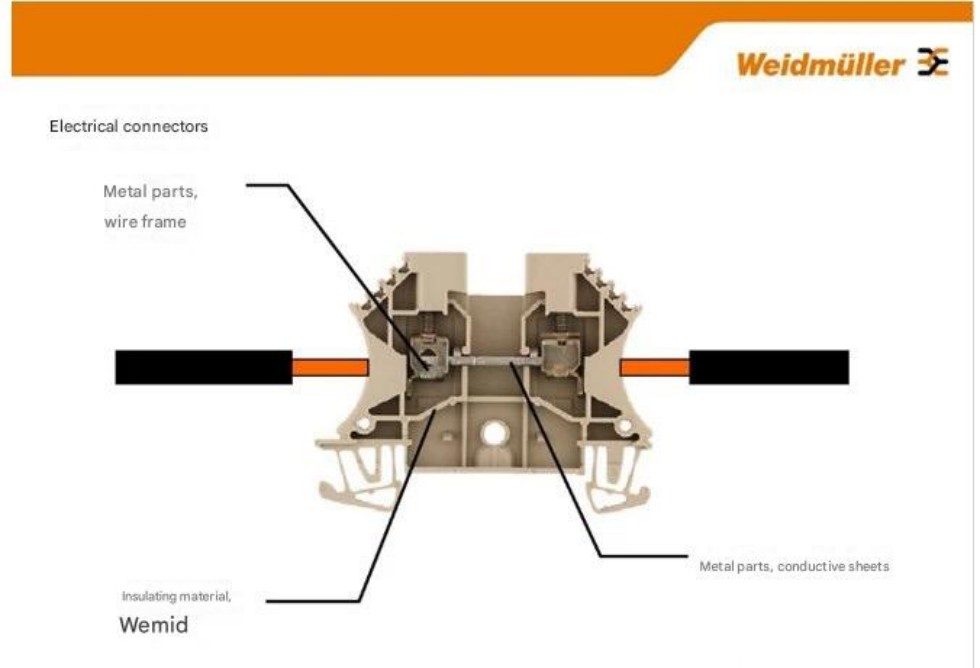

Weidmuller wemid terminal block
Weidmuller provides a large number of terminal blocks for the electrical equipment of chemical production enterprises. Among them, the W series and Z series terminal blocks are made of high-quality insulating material Wemid, with a flame retardant grade of V-0, no halogen phosphide, and a maximum operating temperature of 130°C, which fully guarantees the safety of production equipment.

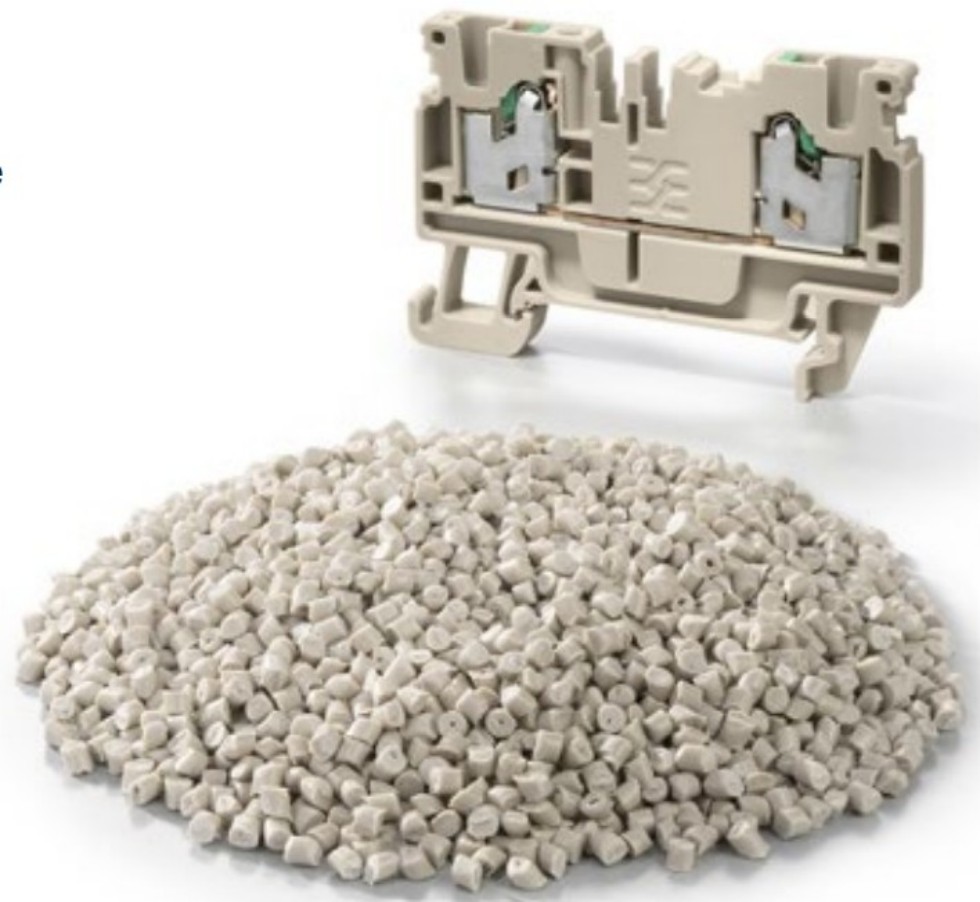

Wemid Insulation Material
Wemid is a modified thermoplastic whose characteristics can meet the requirements of our line connectors. Wemid meets the strict requirements for use in industrial scenarios. To NF F 16-101. The advantages are improved fire resistance and higher continuous operating temperature.
• Higher continuous operating temperature
• Improved fire resistance
• Halogen-free, phosphorus-free flame retardant
• Low smoke generated during fire
• Allowed to be used in railway applications, in compliance with. Complies with NF F 16-101

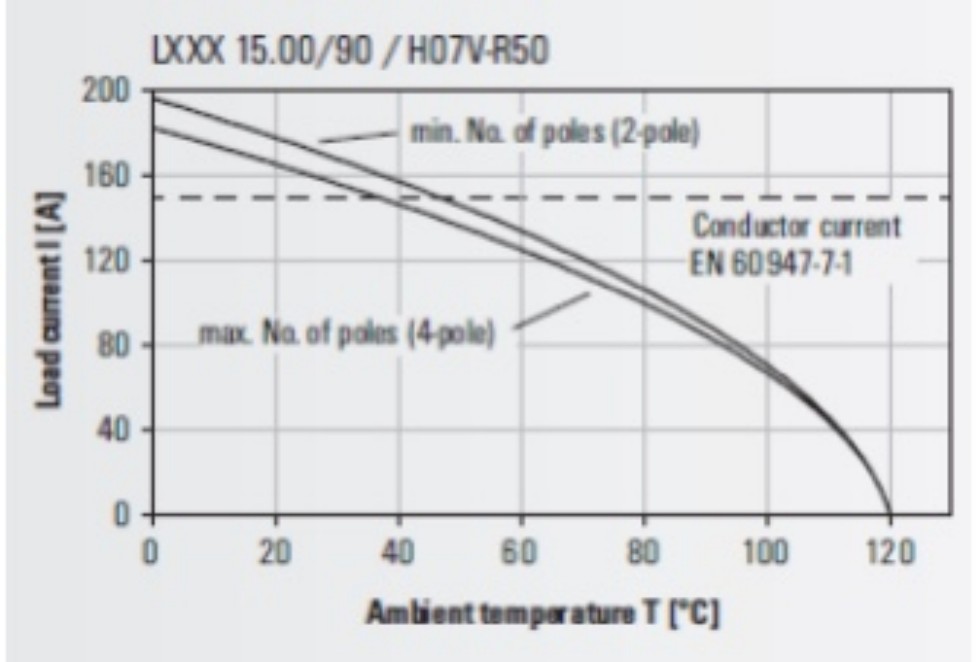

The high-performance insulating material Wemid meets the maximum system availability requirements: the RTI (Relative Temperature Index) reaches 120°, and the maximum continuous use temperature is 20°C higher than that of ordinary PA materials, thus creating more power reserves and ensuring maximum safety during temperature fluctuations and overloads.

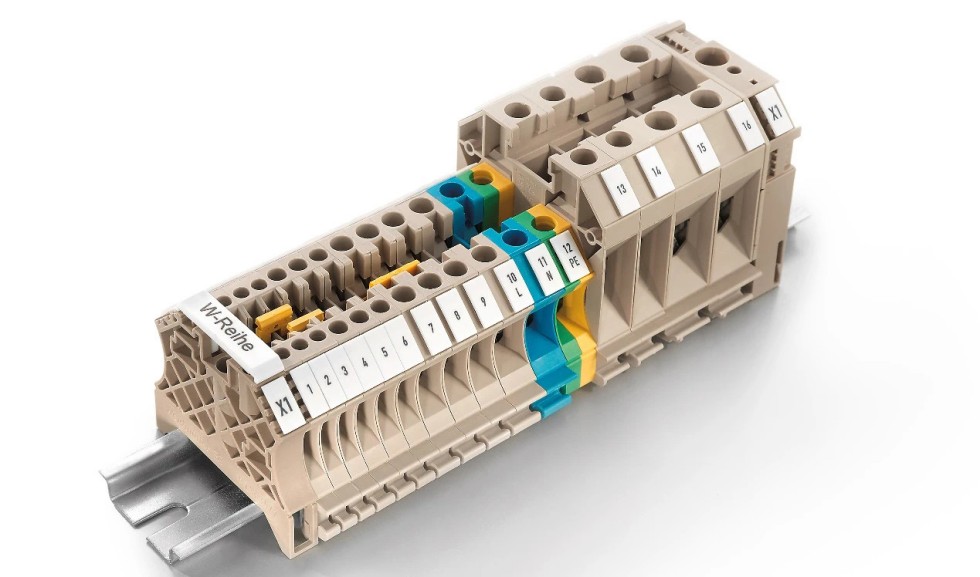

Weidmuller's Wemid material terminals provide a variety of models to meet the complex and changing electrical wiring needs, and can be easily installed on the rail, conveniently and accurately adjusting the position of the terminal on the mounting rail, thus providing the chemical industry with a safe, reliable, convenient and flexible electrical connection solution,
Post time: May-16-2025
